Isuzu tech2 diagnsotic tool for 24V Isuzu truck diagnosis

Description

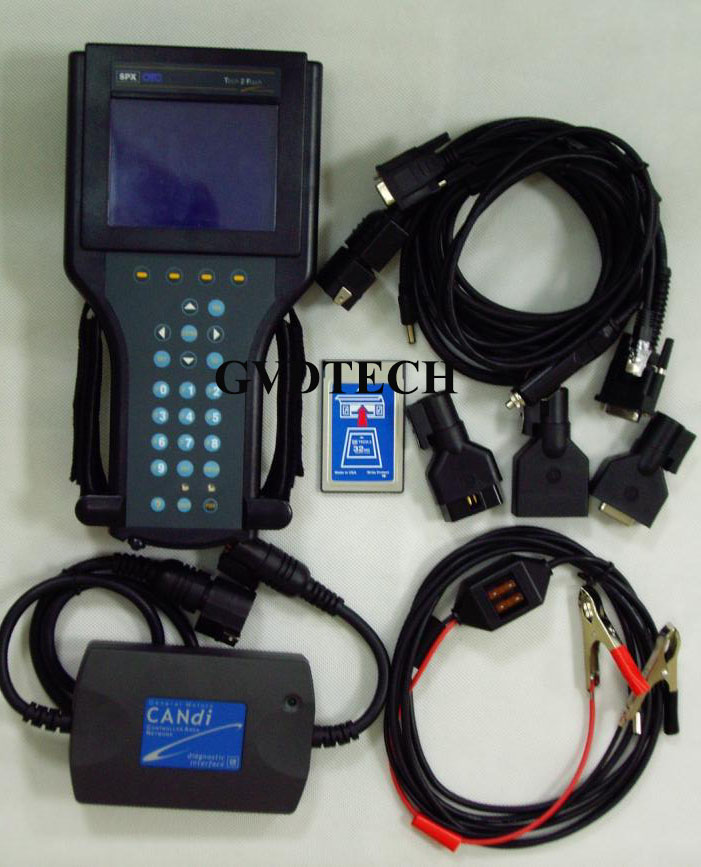

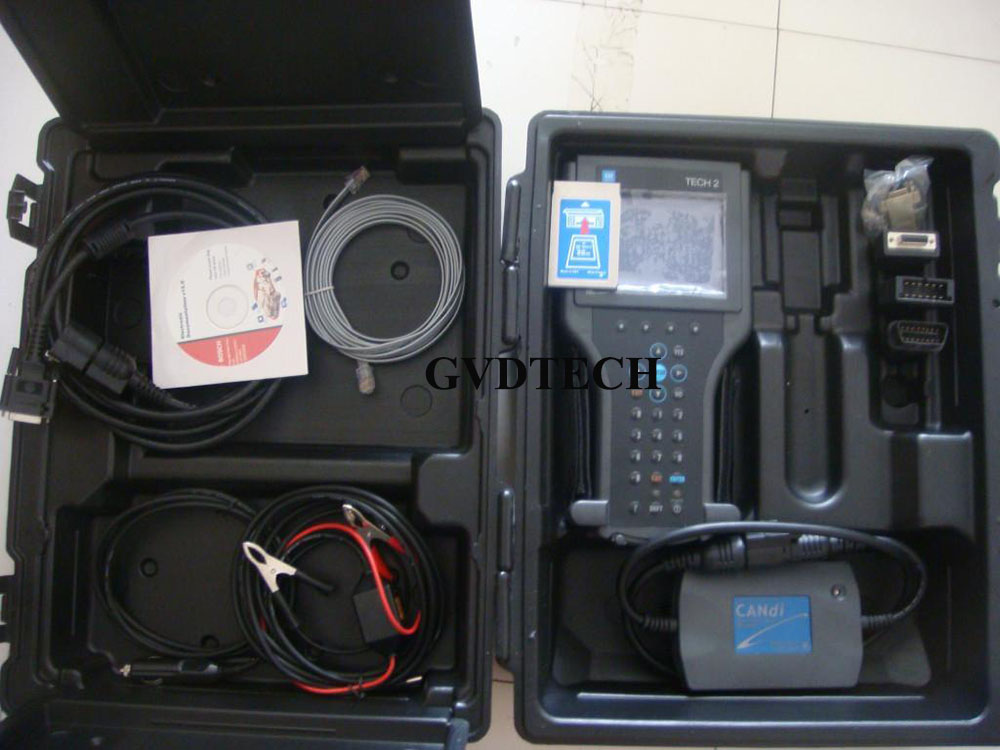

ISUZU TECH2 with ISUZU 24V adapter for truck diagnostic  software version V11.700



Advantages:
1.Software V11.700 ISUZU TECH 2 Diagnostic Software 32MB Cards
2.Software version : V11.700, from 1998 to 2016
3.Display language can be selected according customer’s demand
4.Supporting hybrid and CNG vehicles
5.Software Language: Czech,Denish,German,Greekn, English, Spanish, Finnish, French,Croatian,Hungarian,Indonesian,Italian,Jananese,Dutch,Norwegian,Portuguese(Bazil),Russian,Sweden,Thau,Turkey,Traditional Chinese,Simplified Chinese etc



Features:

  1. Authentic ISUZU software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model ISUZU vehicles.
  2. Support for on-board diagnostics on all ISUZU systems 1992 thru current year.
  3. Removable hardware modules provide insurance against scan tool obsolescence.
  4. Large, easy-to-read backlit screen.
  5. RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
  6. Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
  7. Ability to view the status of vehicle diagnostic tests as they run.
  8. Bi-directional
  9. The authentic ISUZU 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.



ISUZU Tech-2 Parameters:

Dimensions: 12″×6″×2″
Microprocessor:32 bit, 16 MHz
Memory:32 MB flash type II PCMCIA. Type III slot available for future expansion.
Communications:Integral RS232 communication port.
Screen:3.8″×2.8″ backlit monochrome with full graphics capability: 320×240 pixels. Displays up to 9 vehicle parameters at once]



An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flash’s diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all Isuzu vehicle applications, even those vehicles using other platforms such as OBD I and OBD II.
